Suitable for use with cables from diameter 51 mm to 114 mm. Double piece, Double fixing design can be double stacked on common fixing. Operating temperature – 60°C to + 100°C
These adaptors help create a strong mechanical connection while maintaining proper sealing and protection for cables and conduits. They protect wiring systems from environmental factors such as dust, moisture, oil, vibration, and mechanical stress, ensuring long-term durability and safe electrical performance.

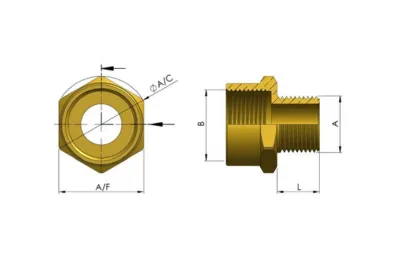

| CODE | A (Male) | B (Female) | L | A/F | A/C |
|---|---|---|---|---|---|
| SRP-AD1600 | M16x1.5 | 3/8" | 15.0 | 19.0 | 21.0 |
| SRP-AD1601 | M16x1.5 | 1/2" | 15.0 | 24.0 | 27.0 |
| SRP-AD1602 | M16x1.5 | 3/4" | 15.0 | 30.0 | 34.0 |
| SRP-AD2001 | M20x1.5 | 1/2" | 15.0 | 24.0 | 27.0 |
| SRP-AD2002 | M20x1.5 | 3/4" | 15.0 | 30.0 | 34.0 |
| SRP-AD2003 | M20x1.5 | 1" | 15.0 | 38.0 | 42.0 |
| SRP-AD2502 | M25x1.5 | 3/4" | 15.0 | 30.0 | 34.0 |
| SRP-AD2503 | M25x1.5 | 1" | 15.0 | 38.0 | 42.0 |
| SRP-AD2504 | M25x1.5 | 1 1/4" | 15.0 | 45.0 | 50.0 |
| SRP-AD3203 | M32x1.5 | 1" | 15.0 | 38.0 | 42.0 |
| SRP-AD3204 | M32x1.5 | 1 1/4" | 15.0 | 45.0 | 50.0 |
| SRP-AD3205 | M32x1.5 | 1 1/2" | 15.0 | 55.0 | 60.0 |
| SRP-AD4004 | M40x1.5 | 1 1/4" | 15.0 | 45.0 | 50.0 |
| SRP-AD4005 | M40x1.5 | 1 1/2" | 15.0 | 55.0 | 60.0 |
| SRP-AD4006 | M40x1.5 | 2" | 15.0 | 68.0 | 75.0 |
| SRP-AD5005 | M50x1.5 | 1 1/2" | 15.0 | 55.0 | 60.0 |
| SRP-AD5006 | M50x1.5 | 2" | 15.0 | 68.0 | 75.0 |
| SRP-AD5007 | M50x1.5 | 2 1/2" | 15.0 | 82.0 | 89.0 |
| SRP-AD6306 | M63x1.5 | 2" | 15.0 | 68.0 | 75.0 |
| SRP-AD6307 | M63x1.5 | 2 1/2" | 15.0 | 82.0 | 89.0 |
| SRP-AD6308 | M63x1.5 | 3" | 15.0 | 98.0 | 108.0 |
| SRP-AD7507 | M75x1.5 | 2 1/2" | 15.0 | 82.0 | 89.0 |
| SRP-AD7508 | M75x1.5 | 3" | 15.0 | 98.0 | 108.0 |
| SRP-AD9008 | M90x1.5/2.0 | 3" | 20.0 | 98.0 | 108.0 |
| CODE | A (Male) | B (Female) | L | A/F | A/C |
|---|---|---|---|---|---|
| SRP-AD0016 | 3/8" | M16x1.5 | 16.0 | 19.0 | 21.0 |
| SRP-AD0020 | 3/8" | M20x1.5 | 16.0 | 24.0 | 27.0 |
| SRP-AD0025 | 3/8" | M25x1.5 | 16.0 | 30.0 | 34.0 |
| SRP-AD0120 | 1/2" | M20x1.5 | 20.0 | 24.0 | 27.0 |
| SRP-AD0125 | 1/2" | M25x1.5 | 20.0 | 30.0 | 34.0 |
| SRP-AD0132 | 1/2" | M32x1.5 | 20.0 | 38.0 | 42.0 |
| SRP-AD0225 | 3/4" | M25x1.5 | 21.0 | 30.0 | 34.0 |
| SRP-AD0232 | 3/4" | M32x1.5 | 21.0 | 38.0 | 42.0 |
| SRP-AD0240 | 3/4" | M40x1.5 | 21.0 | 45.0 | 50.0 |
| SRP-AD0332 | 1" | M32x1.5 | 26.0 | 38.0 | 42.0 |
| SRP-AD0340 | 1" | M40x1.5 | 26.0 | 45.0 | 50.0 |
| SRP-AD0350 | 1" | M50x1.5 | 26.0 | 55.0 | 60.0 |
| SRP-AD0440 | 1 1/4" | M40x1.5 | 26.0 | 45.0 | 50.0 |
| SRP-AD0450 | 1 1/4" | M50x1.5 | 26.0 | 55.0 | 60.0 |
| SRP-AD0463 | 1 1/4" | M63x1.5 | 26.0 | 68.0 | 75.0 |
| SRP-AD0550 | 1 1/2" | M50x1.5 | 27.0 | 55.0 | 60.0 |
| SRP-AD0563 | 1 1/2" | M63x1.5 | 27.0 | 68.0 | 75.0 |
| SRP-AD0575 | 1 1/2" | M75x1.5 | 27.0 | 82.0 | 89.0 |
| SRP-AD0663 | 2" | M63x1.5 | 28.0 | 68.0 | 75.0 |
| SRP-AD0675 | 2" | M75x1.5 | 28.0 | 82.0 | 89.0 |
| SRP-AD0690 | 2" | M90x1.5/2.0 | 28.0 | 98.0 | 108.0 |
| SRP-AD0775 | 2 1/2" | M75x1.5 | 41.0 | 82.0 | 89.0 |
| SRP-AD0790 | 2 1/2" | M90x1.5/2.0 | 41.0 | 98.0 | 108.0 |
| SRP-AD0890 | 3" | M90x1.5/2.0 | 42.0 | 98.0 | 108.0 |
