We offer a wide range of A1 /A2 Cable Gland that is designed with outer displacement seal. Used for unarmored cables with rubber outer sheath, these are suitable for indoor and outdoor application.
Application: For use with unarmoured cables with rubber outer sheath. Secures outer sheath of cable. Displecement seal concept makes it suitable for Indoor and outdoor application.
Design Features: Compliant to BS EN 62444 : 2013. Outer displacement seal.

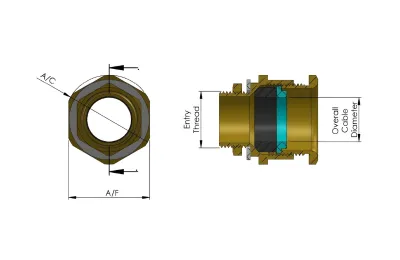

| Gland Code | Size | Entry Thread | Overall Cable Diameter | A/F Max | A/C Max | ||
|---|---|---|---|---|---|---|---|
| Metric | NPT | Min | Max | ||||
| SRP-A1A2-20S16 | 20S16 | M20x1.5 | 1/2" | 3.5 | 8.5 | 22.0 | 24.5 |
| SRP-A1A2-20S | 20S | M20x1.5 | 1/2" | 7.8 | 11.5 | 24.0 | 27.0 |
| SRP-A1A2-20L | 20L | M20x1.5 | 1/2" | 10.7 | 13.9 | 27.0 | 30.0 |
| SRP-A1A2-25S | 25S | M25x1.5 | 3/4" | 13.2 | 17.5 | 31.0 | 35.0 |
| SRP-A1A2-25L | 25L | M25x1.5 | 3/4" | 16.6 | 20.0 | 36.0 | 39.5 |
| SRP-A1A2-32S | 32S | M32x1.5 | 1" | 19.0 | 24.0 | 42.0 | 45.0 |
| SRP-A1A2-32L | 32L | M32x1.5 | 1" | 22.0 | 26.2 | 42.0 | 45.0 |
| SRP-A1A2-40S | 40S | M40x1.5 | 1 1/4" | 26.0 | 31.0 | 50.0 | 53.5 |
| SRP-A1A2-40L | 40L | M40x1.5 | 1 1/4" | 28.8 | 33.7 | 50.0 | 54.5 |
| SRP-A1A2-50S | 50S | M50x1.5 | 1 1/2" | 32.2 | 37.3 | 55.0 | 60.5 |
| SRP-A1A2-50L | 50L | M50x1.5 | 2" | 36.7 | 43.2 | 60.0 | 66.5 |
| SRP-A1A2-63S | 63S | M63x1.5 | 2" | 42.5 | 49.7 | 70.0 | 76.0 |
| SRP-A1A2-63L | 63L | M63x1.5 | 2 1/2" | 49.0 | 55.6 | 73.0 | 83.0 |
| SRP-A1A2-75S | 75S | M75x1.5 | 2 1/2" | 55.0 | 62.2 | 82.0 | 90.5 |
| SRP-A1A2-75L | 75L | M75x1.5 | 3" | 61.6 | 67.1 | 85.0 | 94.0 |
| SRP-A1A2-90L | 90L | M90x2.0 | 3" | 66.8 | 74.1 | 99.0 | 110.0 |
